How To Audit Canonicals

How To Audit Canonicals Using The SEO Spider

The rel=”canonical” element helps specify a single preferred version of a page when it’s available via multiple URLs. It’s a hint to the search engines to help prevent duplicate content, by consolidating indexing and link properties to a single URL to use in ranking.

This tutorial walks you through how you can use the Screaming Frog SEO Spider to audit canonical implementation quickly and efficiently across a website. The SEO Spider will crawl canonical link elements found in the HTML and HTTP Headers and report upon their set-up and common errors.

To get started, you’ll need to download the SEO Spider which is free in lite form, for crawling up to 500 URLs. You can download via the buttons in the right hand side bar. Next up, simply follow these steps.

1) Ensure ‘Store’ & ‘Crawl’ Canonicals are Enabled under ‘Configuration > Spider > Crawl’

This option is enabled by default, so unless you have adjusted the configuration this will already be set-up. The SEO Spider ‘Configuration’ is available in the top level menu.

Crawl Canonicals

This will mean URLs referenced in rel=”canonical” will be crawled, as well as extracted and reported. Next, click ‘OK’.

2) Crawl The Website

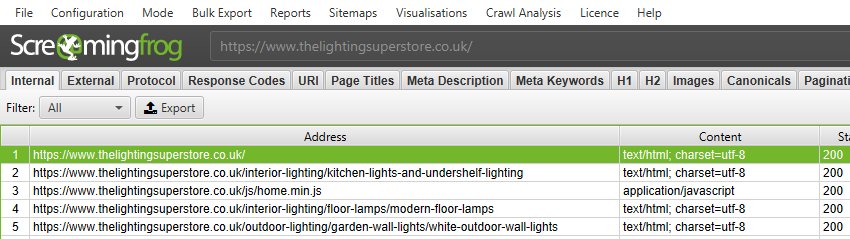

Open up the SEO Spider, type or copy in the website you wish to crawl in the ‘Enter URL to spider’ box and hit ‘Start’.

Crawl Site to audit canonicals

The website and any URLs within rel=”canonical” elements will be crawled.

Now grab a coffee and wait until the progress bar reaches 100%, and the crawl is completed.

3) View The Canonicals Tab

The Canonicals tab shows all URLs found in a crawl and their corresponding rel=”canonical” link elements and HTTP Canonicals in seperate corresponding columns in the main window pane.

The canonicals tab has 6 filters that help you understand your canonical implementation, and identify common canonical problems.

canonicals tab

The ‘Occurences’ column counts the number of rel=”canonical” elements that has been discovered for each URL.

The right hand overview window pane provides a summary of data contained within each tab and filter, so you know where to click, without having to check each filter to see if there’s data. In the image below, we can see there’s 1 URL that’s ‘canonicalised’ and 1 URL that has a ‘Non-Indexable Canonical’.

canonicals right hand overview pane

You’re able to filter by the following –

  • Contains Canonical – The page has a canonical URL set (either via link element, HTTP header or both). This could be a self-referencing canonical URL where the page URL is the same as the canonical URL, or it could be ‘canonicalised’, where the canonical URL is different to the page URL.
  • Self Referencing – The URL has a canonical which is the same URL as the page URL crawled (hence, it’s self referencing). Ideally only canonical versions of URLs would be linked to internally, and every URL would have a self-referencing canonical to help avoid any potential duplicate content issues that can occur (even naturally on the web, such as tracking parameters on URLs, other websites incorrectly linking to a URL that resolves etc).
  • Canonicalised – The page has a canonical URL that is different to itself. The URL is ‘canonicalised’ to another location. This means the search engines are being instructed to not index the page, and the indexing and linking properties should be consolidated to the target canonical URL. These URLs should be reviewed carefully. In a perfect world, a website wouldn’t need to canonicalise any URLs as only canonical versions would be linked to, but often they are required due to various circumstances outside of control, and to prevent duplicate content.
  • Missing – There’s no canonical URL present either as a link element, or via HTTP header. If a page doesn’t indicate a canonical URL, Google will identify what they think is the best version or URL. This can lead to ranking unpredicatability, and hence generally all URLs should specify a canonical version.
  • Multiple – There’s multiple canonicals set for a URL (either multiple link elements, HTTP header, or both combined). This can lead to unpredictability, as there should only be a single canonical URL set by a single implementation (link element, or HTTP header) for a page.
  • Multiple Conflicting – Pages with multiple canonicals set for a URL that have different URLs specified (via either multiple link elements, HTTP header, or both combined). This can lead to unpredictability, as there should only be a single canonical URL set by a single implementation (link element, or HTTP header) for a page.
  • Non-Indexable Canonical – The canonical URL is a non-indexable page. This will include canonicals which are blocked by robots.txt, no response, redirect (3XX), client error (4XX), server error (5XX) or are ‘noindex’. Canonical versions of URLs should always be indexable, ‘200’ response pages. Therefore, canonicals that go to non-indexable pages should be corrected to the resolving indexable versions.
  • Canonical Is Relative – Pages that have a relative rather than absolute rel=”canonical” link tag. While the tag, like many HTML tags, accepts both relative and absolute URLs, it’s easy to make subtle mistakes with relative paths that could cause indexing-related issues.
  • Unlinked – URLs that are only discoverable via rel=”canonical” and are not linked-to via hyperlinks on the website. This might be a sign of a problem with internal linking, or the URLs contained in the canonical.
  • Outside <head> – Pages with a canonical link element that is outside of the head element in the HTML. The canonical link element should be within the head element, or search engines will ignore it.

4) View Non-Indexable Canonical URLs ‘Indexability Status’ Via The Lower Window Pane ‘URL Details’ Tab

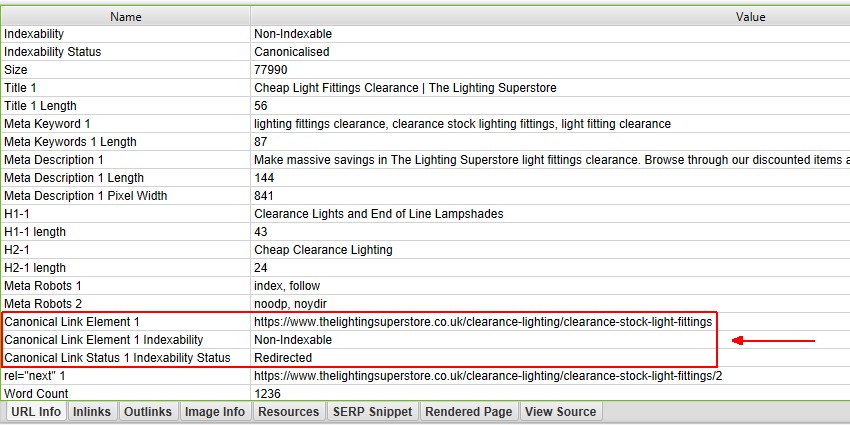

The ‘URL Details’ tab at the bottom displays the reason why a canonical is non-indexable. As per the example below, this canonical URL is non-indexable because it’s redirected.

Non-Indexable Canonical URL Info

The canonical URL is ‘’, which redirects. Hence, this is considered as ‘non-indexable’.

5) Use The ‘Reports > Canonicals > Non-Indexable Canonicals’ Export To Bulk Export Source URLs, Non-Indexable Canonical URLs & Their Status Codes

To bulk export details of source pages that contain non-indexable canonicals, their respective indexability, indexability status, status and status code, click ‘reports’ in the top level menu and choose ‘Canonicals > Non-Indexable Canonicals’.

Non-Indexable Canonicals

This export is often much easier to digest and work through to fix, (or send onto a developer to fix). It also includes details of any canonical URLs that are ‘unlinked’ in the crawl, via normal HTML anchor elements.

6) Click ‘Reports > Canonicals > Canonical Chains’ Report To View Chained Canonicals & Loops

Similar to redirects, canonicals can also be chained and have loops. A page URL can be canonicalised to another URL, which is canonicalised to another URL and so on. Or, often a combination of both canonicals and redirects together.

canonical chains report

Once this report has been exported, filter the ‘Chain Type’ column for ‘Canonical’ or ‘Mixed’ to view canonical chains. In the example above, we can see there is a ‘mixed’ redirect loop, due to the non-indexable canonical URL.

The image below shows the exported spreadsheet, showing there’s two ‘redirects’ (which really means ‘hops’, as it can include canonicalised URLs), the start ‘address’ and the ‘final address’ in fixed columns. The final address indexability is ‘non-indexable’, as it’s ‘canonicalised’. Click the image to expand.

canonical chains export

Scrolling to the right of the spreadsheet, each of the hops that have been discovered are shown. We can see the address has a canonical redirect with a 301 status code, that goes back to the start URL (causing a loop). Again, you can click on the image to expand it.

canonical chain export part 2

To summarise the spread sheet, the canonical chains export shows the page has a canonical URL set as

However, the canonical URL actually 301 redirects back to the original parent page.

While this isn’t a big problem, it is a conflicting signal for the search engines and should be corrected. There might be some scenarios where canonical chains are much larger, and more complicated, and this report will help identify and highlight the error, and full path in the chain.

Further Support

The guide above should help illustrate the simple steps required to audit rel=”canonical” across a website using the SEO Spider.

Please also read our Screaming Frog SEO Spider FAQs and full user guide for more information on the tool.

If you have any further queries, then just get in touch via support.
